Premier Form Tools Ltd are specialist cutting tool designers and manufacturers who have been supplying high quality thread milling tools, single point threading inserts, grooving & groove milling tools and inserts, slotting tools, form tools and special tooling to customers and major carbide cutting tool companies for over thirty years. Premier are also authorised UK distributors for SIMTEK Präzisionswerkzeuge GmbH

Please let us help you with your tooling requirements.

Browse our cutting tool range by

*** NEW PRODUCT INTRODUCTION ***

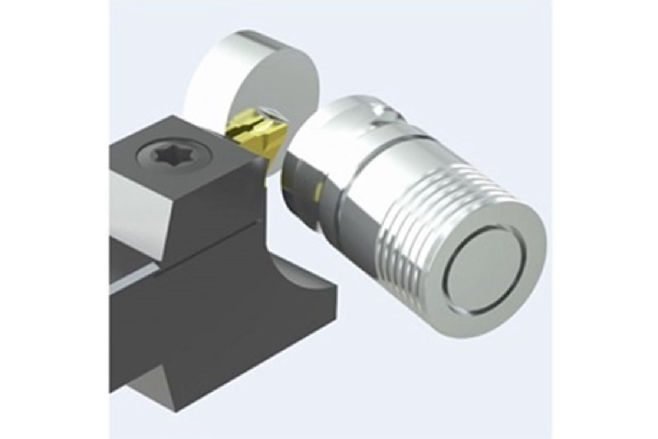

SimTurn AX multi-function drilling/boring inserts

Product Feature
Special Slotting / Broaching Applications

These diagrams show examples of some of the more technical internal slotting / broaching tools that Premier have manufactured to produce components to customer requirements

A special 10mm wide F10 broaching insert shown in gold designed to produce the finished detail from the rough milled outline shown in light blue inside a ø35mm bore

A special ø10mm A10 broaching insert shown in gold designed to finish the curved top upstands from the rough milled outline shown in light blue inside a ø17mm bore

A special ø6.6mm A10 twin tooth slotting insert shown in gold designed to produce orientation slots of two different widths from solid inside a ø7.2mm bore

A special D16 broaching insert shown in gold to produce an internal spline form from solid inside a ø20mm bore

A special toolholder and 12mm wide F12 broaching insert shown in gold to produce an internal location form from solid inside a ø41mm bore

A special D16 slotting insert shown in gold to produce 3 varying width connector location slots from solid inside a ø21.19mm bore
